HT7886 -100V输入，3.5A开关限流降压变换器

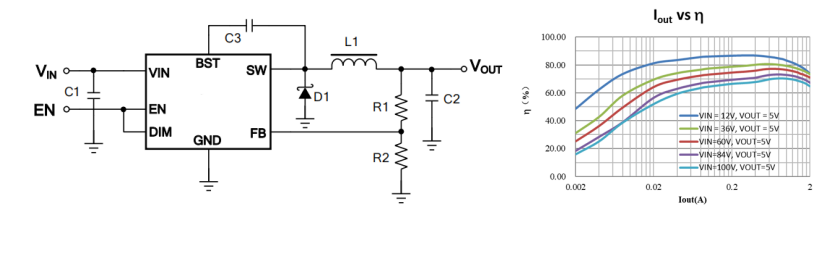

The HT7886 is a high-voltage, step-down, switching
regulator that delivers up to 2A of continuous current to the
load. It integrates a high-side, high-voltage, power
MOSFET with a current limit of 3.5A (HT7886) or 4.2A
(HT7886H), typically. The wide 5V to 100V input range
accommodates a variety of step-down applications, making
it ideal for automotive, industry, and lighting applications.
Hysteretic voltage-mode control is employed for very fast
response.
The switching frequency can be up to 1MHz, allowing for
small component size. Thermal shutdown and short-circuit
protection (SCP) provide reliable and fault-tolerant
operations. A 200µA quiescent current allows the HT7886
to be used in battery-powered applications.
The HT7886 is available in ESOP8 package.
HT7886是一款高压降压开关稳压器，可向负载
提供高达2A的连续电流。它集成了高压的高端
功率MOSFET，电流限制通常为3.5A (HT7886)或4.2A（HT7886H）。其极宽的5V至100V输入
电压范围能适应各种降压应用，使其成为汽车、
工业和照明应用的理想选择。迟滞电压模式控
制的应用，使其具有良好的瞬态响应能力。 开关频率可高达1MHz，从而允许小尺寸的外
围器件。过热保护和短路保护（SCP）使芯片
具有较好的可靠性和容错机制。200µA的静态
电流允许HT7886用于电池供电的应用中。 该产品提供ESOP8封装。
