Single supply voltage

4.5V ~ 14.4V for loudspeaker driver Built-in LDO output 5.5V for others

Loudspeaker power from 12V supply BTL Mode: 8W/CH into 8@1% THD+N

BTL Mode: 10W/CH into 6@<1% THD+N BTL Mode: 12W/CH into 4@<1% THD+N PBTL Mode: 16W/CH into 4@1% THD+N

Loudspeaker power from 12V supply

BTL Mode: 10W/CH into 8@10% THD+N BTL Mode: 13W/CH into 6@10% THD+N BTL Mode: 15W/CH into 4@10% THD+N PBTL Mode: 20W/CH into 4@10% THD+N

93% efficient Class-D operation eliminates need for heat sink

Differential inputs

Internal oscillator

Short-Circuit protection with auto recovery option

Under-Voltage detection

Over-Voltage protection

Pop noise and click noise reduction

Adjustable power limit function for speaker protection

Output DC detection for speaker protection

Filter-Free operation

Over temperature protection with auto recovery

Superior EMC performance

Applications

TV audio

Boom-Box

Powered speaker

Monitors

Consumer Audio Equipment

Description

The AD52058 is a high efficiency stereo class-D audio amplifier with adjustable power limit function. The loudspeaker driver operates from 4.5V~14.4V supply voltage. It can deliver 15W/CH output power into 4 loudspeaker within 10% THD+N at 12V supply voltage and without external heat sink when playing music.

The adjustable power limit function allows user to set a voltage rail lower than half of 5.5V to limit the amount of current through the speaker.

Output DC detection prevents speaker damage from long-time current stress. AD52058 provides superior EMC performance for filter-free application. The output short circuit and over temperature protection include auto-recovery feature.

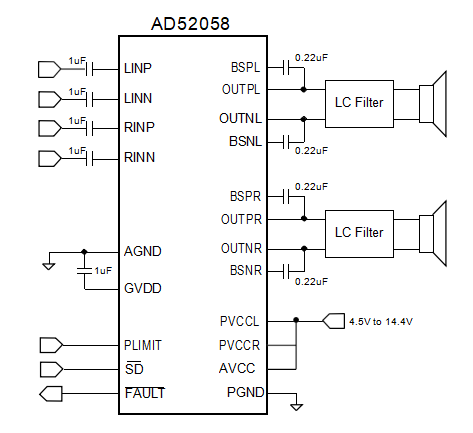

Simplified Application Circuit
