TDA2822 Dual Channel Audio Power Amplifier Circuit

Summary:

TDA2822 for portable recorders and radios

Audio power amplifier.

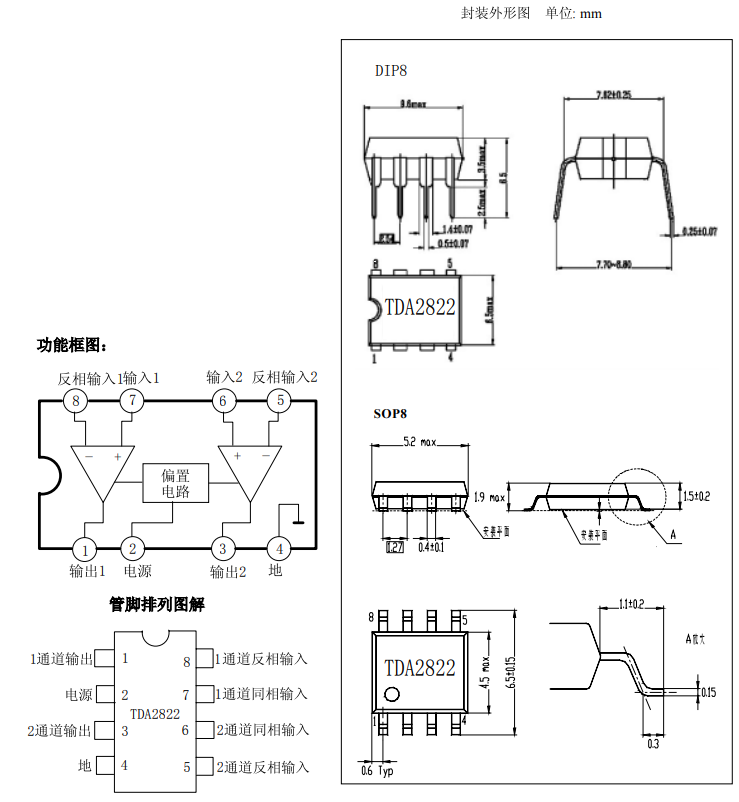

Using DIP8SOP8 package

Characteristic:

The power supply can still work normally when the voltage drops to 18V.

Small crossover distortion

Low static current

It can be used as bridge or stereo power amplifier

Less peripheral components

High channel separation

No impulse noise during startup and shutdown

Soft Limit
