Summary:

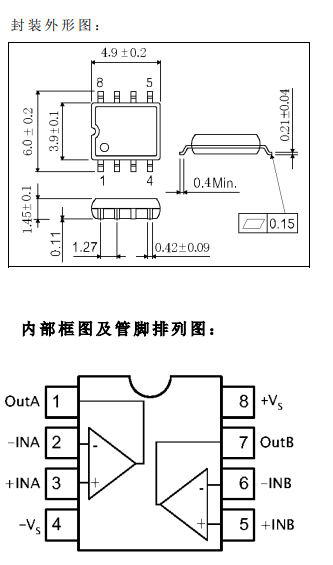

SC358 is a low voltage, low power amplifier circuit. The circuit has a static current of 60 A per channel and a working voltage of 2.1V-5.5V. SC358 has a wide common-mode voltage range and a large output voltage swing. SC358 is designed with CMOS technology, which can provide 1.0MHz bandwidth and 1.0V/s conversion rate. These characteristics of SC358 can be widely used in portable electronic products. SC358 is packaged in SOP8.

Main features:

Static current per channel: 60Az gain bandwidth: 1.0MHz Z input voltage range: -0.1V ~+5.6V (Vs=5.5V) Z ultra-low input bias current: 10pAz power supply voltage range: +2.1V ~+5.5Vz operating temperature range: -40 ~125 ~C Z low power consumption Rail-Rail input and output: typical input offset voltage value: 0.8mV
