Audio power amplifier

Overview:

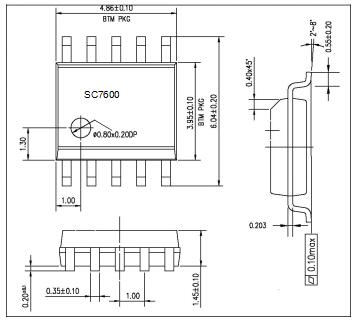

Package outline drawing SC7600 low-voltage stereo headphone amplifier circuit.

Use SSOP-10 package.

Main feature:

The quiescent current is low.

SC7600

The power supply ripple rejection ratio is high.

Low operating voltage.

Built-in power saving mode switch and squelch switch.

There are few external components.

Typical application

Portable Video Player (DISCMAN)

Portable mini player (MD)

Disc-Man

MP3 player

CD-ROM

Other portable Disc fan motor driver.

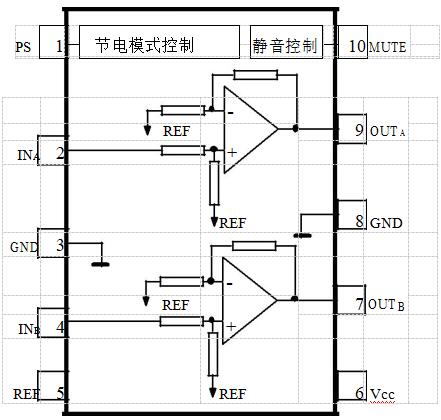

Functional block diagram and pin arrangement diagram
